Installed wires follow the available passages and grooves

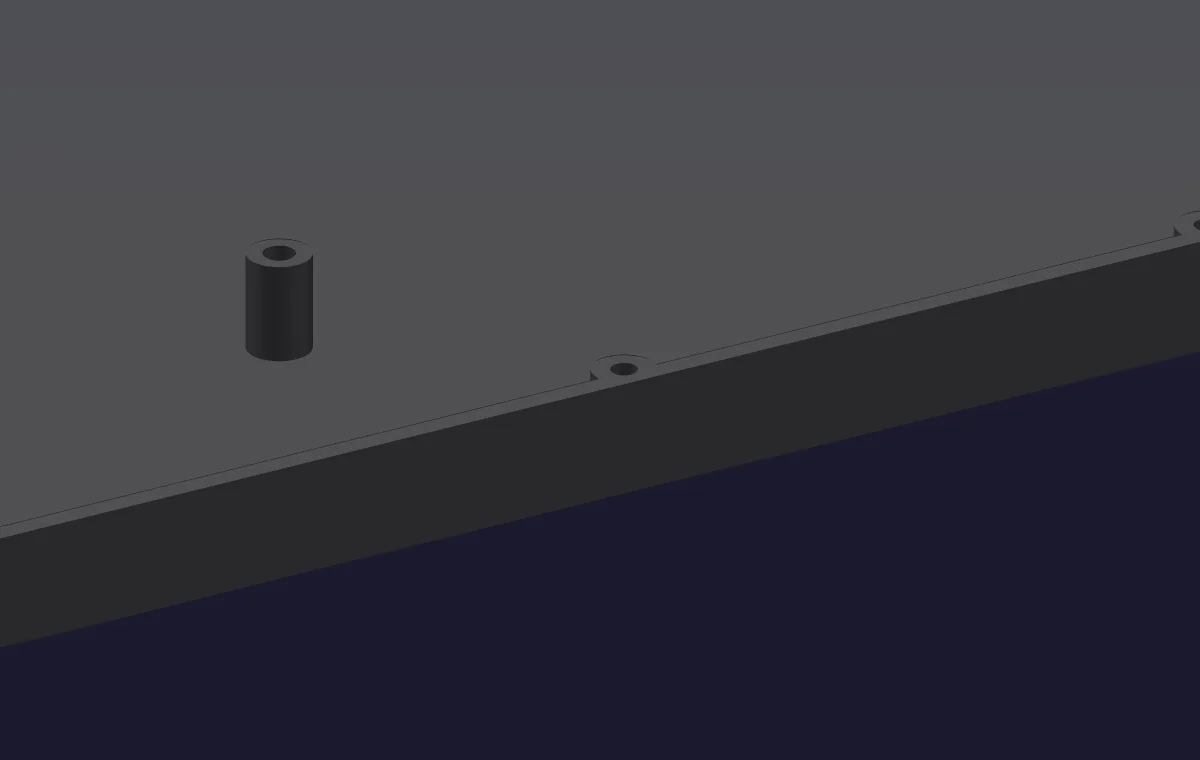

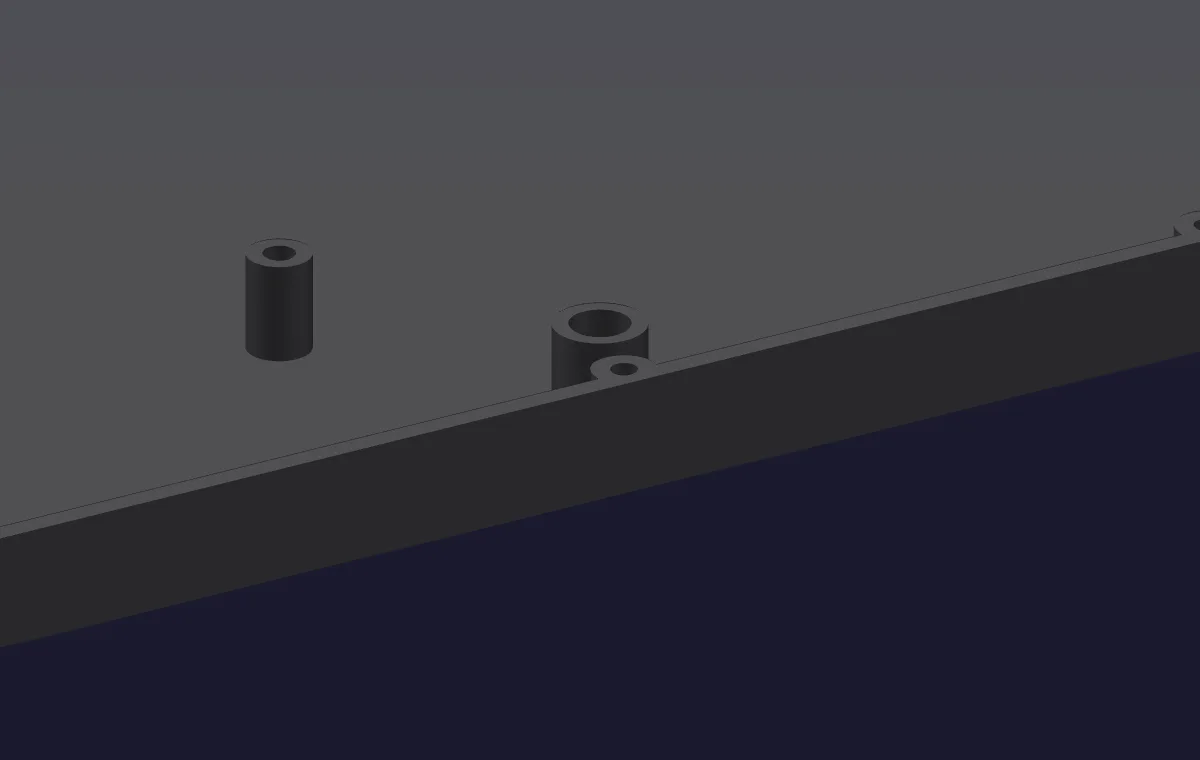

The main foam cavity has a shared Ø7.5 mm cable passage through the cap cup and lid, west of the pump. It carries the three temperature-bus feeds, three carbonator-reed feeds and carbonator earth. Each reservoir reed column uses its own existing passage.

Five conductors turn together through each reservoir passage, then separate into four signal lanes and a continuous common beside the reeds. The temperature bus also keeps a shared section between probes. Its feeds continue through the first probe's splice row without doubling back.

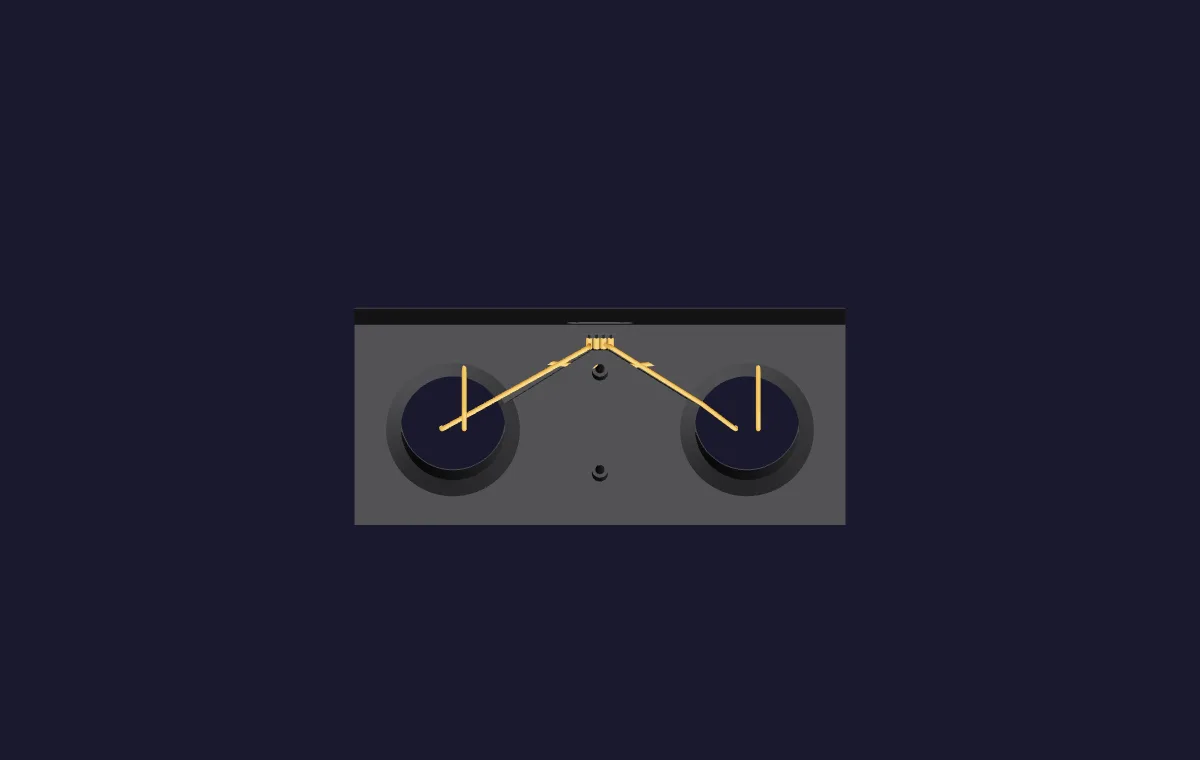

The four cartridge leads dress upward from the pogo tails and follow the existing grooves in pairs. Their joint insulation follows the wire bends. The cartridge's printed geometry is unchanged. The flow-sensor leads rise together in the existing gap beside the regulator. Other wire paths clear the installed tubes and fittings.

The manual routing review records 103 valid single-solid wires and 22 valid connector/insulation bodies, matching native installed positions and separate shared-bundle cores. The exact contact follow-up finds no overlap outside the remaining mesh witnesses' local electrical endpoints. Terminal estimates, physical dressing and enclosure closing motions retain their stated scope in the wiring model.

Derek: “Please proceed resolve all things you can where the solutions are obvious and simple and result in simple things. If you need to bring me in, please give me 3D visuals to understand what you are talking about.”
